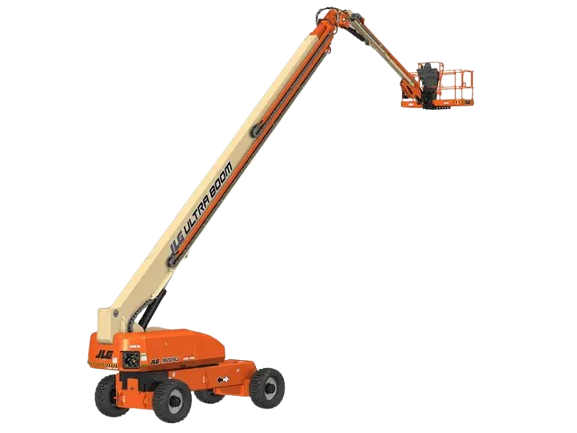

1500SJ
Telescopic Boom LiftAchieve work envelope flexibility and even more outreach at elevation with the telescoping jib of the JLG 1500SJ. The far reach and top performance of this telescopic boom lift makes it ideal for general contractors, glaziers, window cleaners, welders, and more.
Key Specifications
- Horizontal Outreach: 80–ft 0–in
- Max Platform Capacity: 1,000–lb
- Max Platform Height: 150–ft 0–in
Contact Us
Product Details
Achieve work envelope flexibility and even more outreach at elevation with the telescoping jib of the JLG 1500SJ. The far reach and top performance of this telescopic boom lift makes it ideal for general contractors, glaziers, window cleaners, welders, and more.

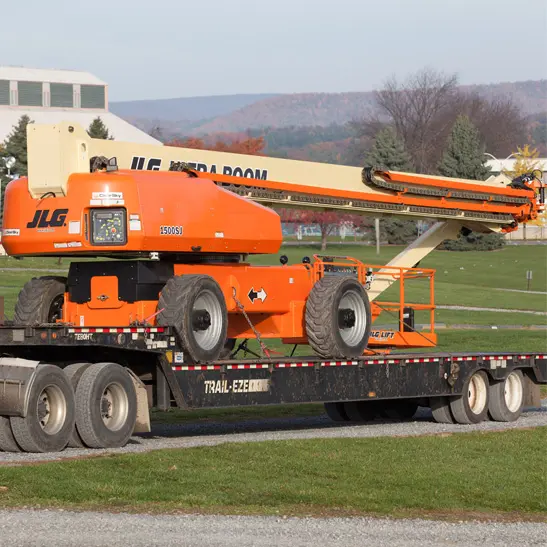

Strong 100,000-psi steel and a dual 1,000 lb. / 500 lb. capacity provides stability and power. For ease of transport, no oversized permit is needed (over weight permit required for highway transportation projects).
The JLG 1500SJ also includes a standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
| Axle Oscillation | 300 mm |
|---|---|
| Gradeability | 40% |
| Max Platform Capacity | 450 kg |
| Swing | 360° |
| Tailswing | 1,68 m |
|---|
| Horizontal Outreach | 24,38 m |
|---|---|
| Max Platform Height | 45,72 m |
| Max Working Outreach | 25,03 m |
